INDRIVE  introduces PCPOS - User Friendly Windows Based Software to keep your PCP system completely automated and operating at top performance.






PCPOS



The most valuable information about an operating oil well is the dynamic pumping fluid level. For a sucker rod driven PCP artificial lift system it has been shown that there is a

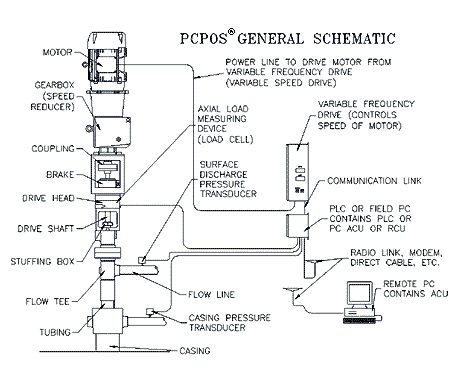

direct relationship between dynamic fluid level and the axial load exerted on the drive head thrust bearing. This axial load can be measured by a load cell on the PCP drive head. PCPOS uses the axial load as the main control variable along with surface tubing pressure, surface casing pressure, motor current and torque to create an expert system to automate and optimize the PC pumping unit. No down hole sensors are required. PCPOS can automate and optimize single wells or multiple wells.

                                                                                CLICK ABOVE PICTURE FOR

                                                                                         CLOSE-UP VIEW



Technical Papers on the PCPOS Software




PCPOS Real Time Functions:

* Receive Data (from load cell, pressure sensors, ammeter, VFC, etc.)

* Analyze Data

* Make Control Decisions

     Adjust Pump Speed

     Send Alarm (s)

     Shut Down Pump

     Etc.

* Communicate to Remote Host Computer (by radio link, cable, etc.)

* Continuously Update Operating History of the Well(s)

* Automate Operation of Diluent or Chemical Injection System (Optional)




PCPOS Helps Diagnose Pump Conditions

* Parted Rods

* Locked Rotor

* Pump-Off

* Swollen Stator Elastomer

* Pump Sanded In

* Rotor Re-Tag

* Motor Failure

* Gearbox Failure




PCPOS Benefits

* Reduce Downtime

* Reduce Workovers

* Reduce Operational Labor

* Improve Operating Response Time

* Extend Equipment Operating Life

* Optimize Well Production

"PCPOS
is a trademark registered in the U.S. (No. 2,261,383) of InterRep Division of Patton Enterprises, Inc. and has been granted patents internationally: U.S. (Nos. 5,941,305 and 6,041,856), Venezuela (No. 58671), Argentina (No. 016151B1), Canada (No. 2231321), and Mexico (No. 229812)."



The Following Technical Papers on PCPOS Have Been Presented at Various Forums:




SPE 52162, "Well Optimization Package for Progressive Cavity Pumping

            Systems", Oklahoma City, OK March 1999.



SPE 53962, "Surface Axial Load Based Progressive Cavity Pump Optimization

            System", Caracas, Venezuela, April 1999.



7th UNITAR International Conference On Heavy Crude and Tar Sands,

           "Automated Diagnostic of Progressive Cavity Pumps", Beijing,

            China, October 1998.



Jornadas de Automatizacion Industrial de Produccion, "Desarrollo de Un

           Esquema Integral de Automatizacion para Pozos de Bombeo de

           Cavidades Progresivas", Puerto la Cruz, Venezuela, November

           1997.
