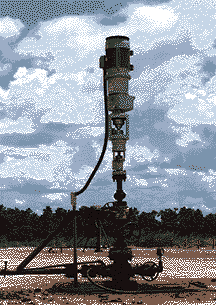

INDRIVE® Offers the popular Inline Beltless

Solid Shaft Direct Coupled Drive for use with Variable Speed Drive Control Panels.

 Below you'll find the available Models and Specifications:



INDRIVE® Inline Beltless Drives Feature:

* No Over-Hung Load - center of gravity centered

  directly over the wellhead.



* No Pulleys, Belts & Hubs - no belt wear or belt

  tension adjustment, no sheave changing or alignment

  to worry about.



* Safest Drive on the Market - no dangerous back

  spinning pulleys & belts.



* Easy Fast Installation



* Safe, Silent, Stable



* Axial Load Ratings - to fit any application



* Field Proven Reliability



* Heavy Duty and Durable



INDRIVE® INLINE BELTLESS DRIVES

SDC SERIES *



4:1 ; 7:1

           4:1

 7:1



 SDC15S-xxVFC

 13,700

 50 ; 30 145-600 85-375
SDC15M-xxVFC 13,700 150 ; 100 145-600 85-375
SDC25S-xxVFC 28,000 50 ; 30 145-600 85-375
SDC25M-xxVFC 28,000 150 ; 100 145-600 85-375
SDC30M-xxVFC 28,000 150 ; 100 145-600 85-375
SDC30L-xxVFC 28,000 >150 ; >100 145-600 85-375
SDC40M-xxVFC 37,000 150 ; 100 145-600 85-375
SDC40L-xxVFC 37,000 >150 ; >100 145-600 85-375
SDC50M-xxVFC 52,500 150 ; 100 145-600 85-375
SDC50L-xxVFC 52,500 >150 ; >100 145-600 85-375

          * SDC Series Drives Are Solid Shaft With Inline Variable Frequency Controlled

            Gearmotors. The Model Name Indicates (S) SOLID SHAFT (DC) DIRECT

            COUPLED BEARING BOX With Its Associated Thrust Load Capacity And

            Backspin Brake Torque Capacity (S = 640 ft-lb; M = 2000 ft-lb; AND L = 8000 ft-lb)

            And An XX Horsepower Gearmotor And Variable Frequency Controller.

         ** The Variable Speed Range Will Change Slightly With The Actual Gearmotor

            Gear Ratio.
            @ The Normal Motor Horsepower Varies Directly With The Gear Ratio.
